Manual retarder cyclo motor reducer transmission Varitron drive worm gear operator WPA/LW

1 Set
Manual retarder cyclo motor reducer transmission Varitron drive worm gear operator WPA/LW
Caracteristicas Galería Descripción de producto Pida una cita
Model Number: WPA / LW
Gearing Arrangement: Worm
Output Torque: 19 - 3950N.M
Rated Power: 0.1kW - 75kW
Input Speed: 0 - 2500rpm
Output Speed: 0 - 500rpm
Worm Gear box Ratio: 5,10,15,20,25,30,40,50,60
Información básica
Model Number: WPA / LW
Pago y Envío Términos
Packaging Details: Gearbox packed in Crate or Wooden boxes to ensure Highest protection and minimum damage
Supply Ability: 800 Set/Sets per Week
Descripción de producto

<< More Information is Available upon Request >>

Quality Gearbox by Varitron from TAIWAN

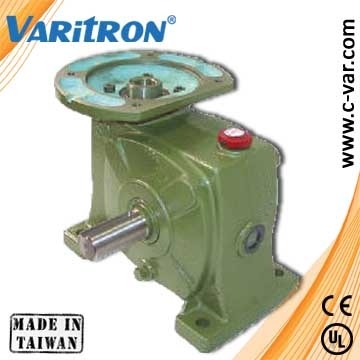

Varitron Cyclo Drive Gear box Speed Reducer Motor manual worm gear operator
Product Description

- Output Shaft
Medium carbon steel S45C, precision process and grinding with CNC lathe.

- Worm Wheel
Alluminum brass ALBC3 and FC20, shaping cutter and computer auxiliary deisgn low friction coefficient, durability in use,

- Output Shaft Cover
Cast iron FC20 or cast aluminum AL

- Outer Shell
Cast iron FC20, one-line body, high intensity, elegant appearance, remarkable radiating effect.

- Worm Shaft
Medium carbon steel S45C or SCM21, cut by precision tooth-rolling machiine, after being heated, grind the tooth so that the tooth is correct and smooth, high efficiency in operation, without noise.

- Input Shaft Cover
Case iron FC20 or cast aluminum AL


Model Name: WPA or LW

Made in Taiwan to ensure durable quality

Worm Gear Frame 50-135Worm Gear Frame 155-250
Worm Gear Frame 300-500

Company Information

Varitron follows strickly on our production SOP to ensure finest quality for power transmission speed reducer gearbox.

Our Services
Cyclo GearmotorPlanetary GearmotorHelical Gearmotor
Belt VariatorBelt Variator Mixer Agitator
